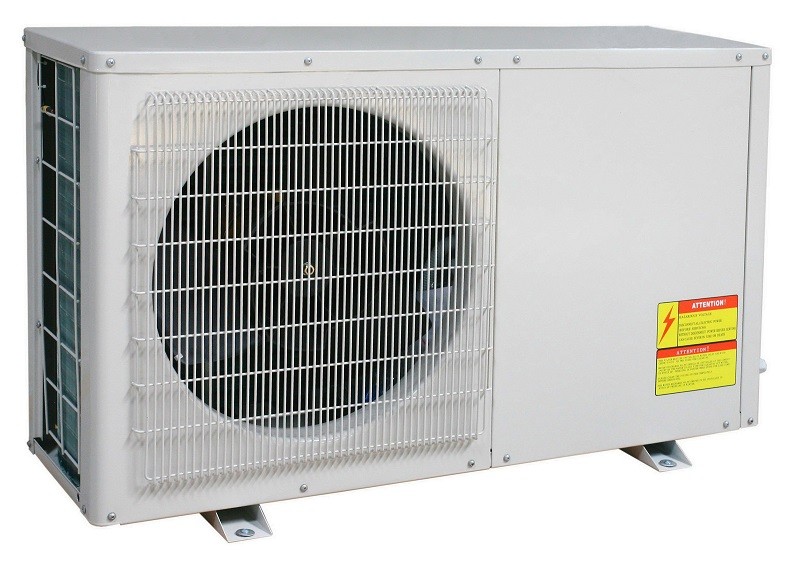

4~6kw hydronic air source heat pump for house heating and hot water
| Categories | Air source heat pump |
|---|---|
| Brand | REAL POWER |
| Model | ESDAW-4CH/6CH |
| Color | White, black, grey |
| Compressor | Hitachi |
| Heat exchanger | Tube in shell |
| Throttling device | Electronica expansion valve |
| Controller | Lcd intelligent controller |
| Refrigerant | R410A |
| Custom color | Available |
| Sample | Available |
| Auto defrosting | Yes |
| Max. temperature | 60℃ |
| FOB port | Foshan |
| Terms of Payment | T/T |
| Update Time | June 3,2023 |
Detail Information
4~6kw hydronic air source heat pump for house heating and hot water
Specification
| Model | ESDAW-4CH | ESDAW-6CH | |
| Heating capacity A7/W35 | KW | 4 | 5.9 |
| Heating power input | KW | 1.1 | 1.6 |
| Rated current | A | 5 | 7.3 |
| COP A7/W35 | / | 3.64 | 3.69 |
| Max. water temperature | ℃ | 60 | 60 |
| Rated water temperature | ℃ | 55 | 55 |
| Water flow | m3/h | 0.80 | 1.00 |
| Water pressure drop | Kpa | 18 | 20 |
| Water connections | Inch | 3/4" | 3/4" |
| Compressor | Brand | Hitachi | Hitachi |
| Qty | 1 | 1 | |
| Power supply | V/PH/Hz | 220～240/1/50 | 220～240/1/50 |
| Refrigerant | / | R410a | R410a |
| Noise | dB(A) | 48 | 48 |
| Net weight | kg | 57 | 60 |
| Gross weight | kg | 70 | 73 |
| Net dimensions | mm | 1010*330*600 | 1010*330*600 |
| Packing dimensions | mm | 1220*380*760 | 1220*380*760 |
