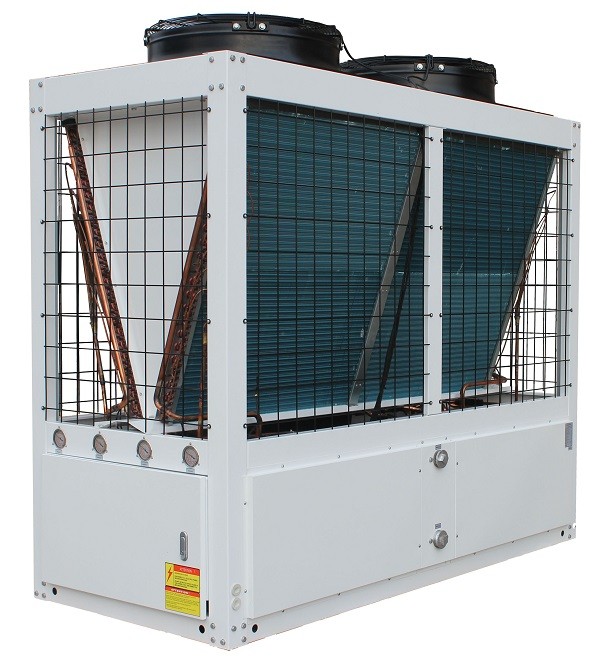

42-65kw Commercial energy saving air to water air source heat pump
| Categories | Commercial heat pump |
|---|---|
| Brand | REAL POWER |
| Model | ESDAW-42CV/55CV/65CV |
| Color | White, black, grey |
| Compressor | Panosonic |
| Heat exchanger | Plate heat exchanger |
| Throttling device | Electronic expansion valve |
| Controller | Lcd intelligent controller |
| Refrigerant | R410A |
| Custom color | Available |
| Sample | Available |
| FOB port | Foshan |
| Terms of Payment | T/T |
| Update Time | Apr 20,2024 |
Detail Information
42-65kw Commercial energy saving air to water air source heat pump
| Model | ESDAW-42CV | ESDAW-55CV | ESDAW-65CV | |
| Heating capacity A7/W35 | KW | 42 | 55 | 65 |
| Heating power input | KW | 12.3 | 15.7 | 18.8 |
| Rated current | A | 20.8 | 26.5 | 31.7 |
| COP A7/W35 | / | 3.41 | 3.50 | 3.46 |
| Max. water temperature | ℃ | 60 | 60 | 60 |
| Rated water temperature | ℃ | 55 | 55 | 55 |
| Water flow | m3/h | 7.20 | 9.50 | 11.20 |
| Water pressure drop | Kpa | 42 | 44 | 46 |
| Water connections | Inch | 1" | 1" | 1" |
| Compressor | Brand | Panosonic | Panosonic | Panosonic |
| Qty | 4 | 4 | 4 | |
| Power supply | V/PH/Hz | 380～400/3/50 | 380～400/3/50 | 380～400/3/50 |
| Noise | dB(A) | 65 | 68 | 68 |
| Net weight | kg | 496 | 506 | 516 |
| Gross weight | kg | 518 | 528 | 538 |
| Net dimensions | mm | 2000*900*1900 | 2000*900*1900 | 2000*900*1900 |
| Packing dimensions | mm | 2200*990*2100 | 2200*990*2100 | 2200*990*2100 |
