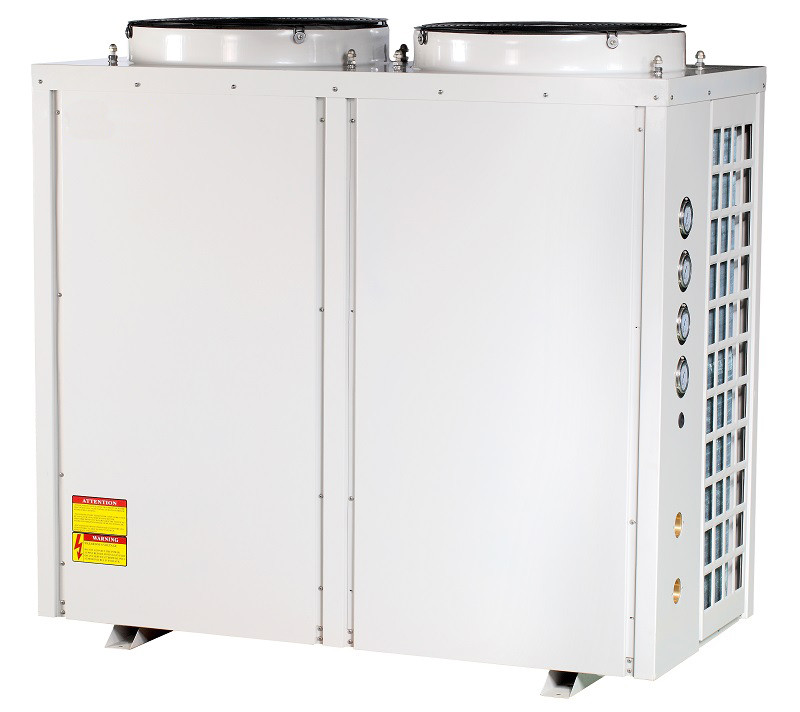

21-34kw eco friendly hrydronic air to water heat pump
| Categories | Air source heat pump |
|---|---|
| Brand | REAL POWER |
| Model | ESDAW-21CV/27CV/34CV |
| Color | White, black, grey |
| Compressor | Panosonic |
| Heat exchanger | High efficiency tube in shell |
| Throttling device | Electronica expansion valve |
| Controller | Lcd intelligent controller |
| Refrigerant | R410A |
| Custom color | Available |
| Sample | Available |
| FOB port | Foshan |
| Terms of Payment | T/T |
| Update Time | June 2,2023 |
Detail Information
21-34kw eco friendly hrydronic air to water heat pump
| Model | ESDAW-21CV | ESDAW-27CV | ESDAW-34CV | |
| Heating capacity A7/W35 | KW | 21 | 27 | 33.5 |
| Heating power input | KW | 6 | 7.7 | 9.6 |
| Rated current | A | 10.1 | 13 | 16.2 |
| COP A7/W35 | / | 3.50 | 3.51 | 3.49 |
| Max. water temperature | ℃ | 60 | 60 | 60 |
| Rated water temperature | ℃ | 55 | 55 | 55 |
| Water flow | m3/h | 3.60 | 4.60 | 5.80 |
| Water pressure drop | Kpa | 33 | 35 | 40 |
| Water connections | Inch | 1" | 1" | 1" |
| Compressor | Brand | Panosonic | Panosonic | Panosonic |
| Qty | 2 | 2 | 2 | |
| Power supply | V/PH/Hz | 380～400/3/50 | 380～400/3/50 | 380～400/3/50 |
| Refrigerant | / | R410a | R410a | R410a |
| Noise | dB(A) | 60 | 62 | 62 |
| Net weight | kg | 272 | 278 | 292 |
| Gross weight | kg | 290 | 296 | 310 |
| Net dimensions | mm | 1470*735*990 | 1470*735*990 | 1470*735*990 |
| Packing dimensions | mm | 1530*810*1140 | 1530*810*1140 | 1530*810*1140 |
