heat pump pool heater

heat pump pool heater
CategoriesPool heat pump
AlbumView larger image
BrandREAL POWER
ModelESDPH-6/11/13CH
FOB portGuangzhou port
Terms of PaymentT/T
Download DOC
Update Time2019-08-22
Detail Information
Features:
1) White, Green and Silver grey color for option.
2) Base frame and external panels made of galvanized powder coated steel
3) Compact structure and good demountability
4) Titanium coil exchanger with full resistance against corrosion ensures a working life of 15 years
5) High efficiency compressor with R410A refrigerant
6) Flow switch for water flow protection
7) Intelligent controller8) Air exchanger ( fin-coil ) with hydrophilic coating
8) Automatic defrosting function included (with reverse cycle valve inside)
9) General and operational test carried out for every unit before package in the factory

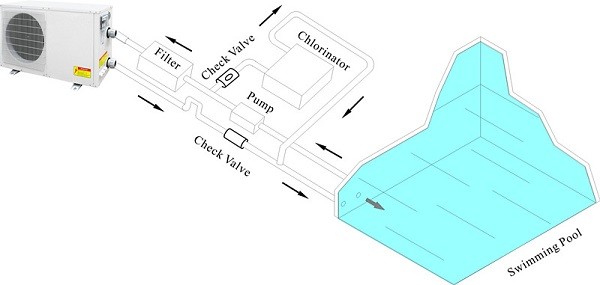

Installation



Technical data
Model  ESDPH-6CH ESDPH-8CH ESDPH-11CH ESDPH-13CH
Heating capacity*A15/W27 KW 4.8 8 10 11.7
Heating power input* KW 0.98 1.67 2.06 2.44
Rated current* A 4.45 7.59 9.36 11.1
COP* / 4.90 4.79 4.85 4.80
Heating capacity**A24/W27 KW 5.5 8.8 11 13
Heating power input** KW 0.99 1.68 2.08 2.46
Rated current** A 4.5 7.61 9.46 11.2
COP** / 5.56 5.24 5.29 5.28
Max. water temperature 40 40 40 40
Rated water temperature 27 27 27 27
Water flow m3/h 1.90 3.00 3.80 4.40
Water connections inch 2" 2" 2" 2"
Noise db 48 52 58 58
Compressor Brand Hitachi Hitachi Hitachi Hitachi
Quantity 1 1 1 1
Power supply V/PH/Hz 220240/1/50 220240/1/50 220240/1/50 220240/1/50
Refrigerant / R410a R410a  R410a  R410a
Condenser / Titanium tube Titanium tube Titanium tube Titanium tube
Type of defrosting / Reverse circulation Reverse circulation Reverse circulation Reverse circulation
Net weight kg 60 65 69 74
Gross weight kg 73 78 82 87
Net dimensions mm 1010 x 330 x 600 1010 x 330 x 600 1010 x 330 x 600 1010 x 330 x 600
Packing dimensions mm 1120*380*760  1120*380*760  1120*380*760  1120*380*760
