75-110kw Eco friendly commercial use large capacity air to water heat pump

75-110kw Eco friendly commercial use large capacity air to water heat pump
75-110kw Eco friendly commercial use large capacity air to water heat pump75-110kw Eco friendly commercial use large capacity air to water heat pump75-110kw Eco friendly commercial use large capacity air to water heat pump
CategoriesCommercial heat pump
BrandREAL POWER
ModelESDAW-80CV/110CV
ColorWhite
CompressorPanasonic
Heat exchangerPlate heat exchanger
Throttling deviceElectronic expansion valve
ControllerLcd intelligent controller
RefrigerantR407C/R410A
FunctionHeating or cooling
SampleAvailable
FOB portFoshan
Terms of PaymentT/T
Update Time2021-10-16
Detail Information

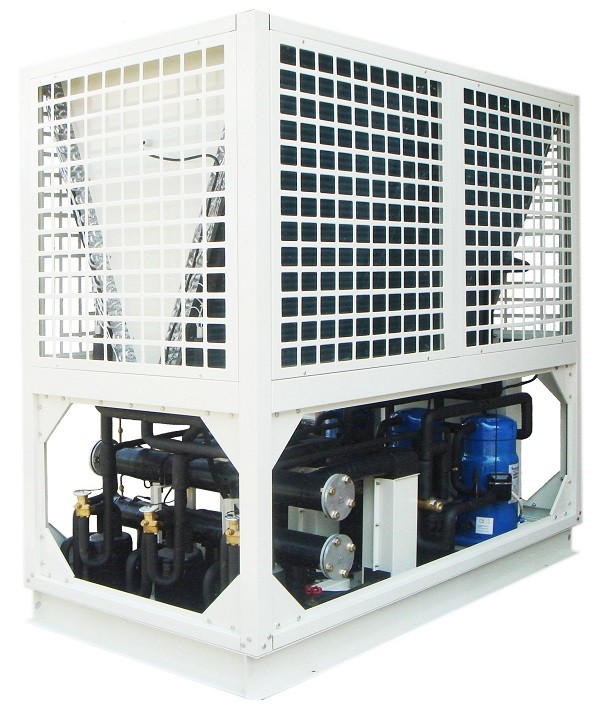

75-110kw Eco friendly commercial use large capacity air to water heat pump

Specification

  ESDAW-80CV ESDAW-110CV
Heating capacity KW 80 110
Heating power input KW 22.9 31.4
Hot water supply L/h 1720 2365
Rated current A 34.9 47.8
COP   3.49  3.50
Max. water temperature 60  60
Rated water temperature 55  55
Water flow m3/h 13.80  18.90
Water pressure drop Kpa 50  55
Water connections Inch 3" 3"
Compressor Brand Panasonic Panasonic
Quantity 3 4
Power supply   380V/3PH/50Hz 380V/3PH/50Hz
Noise dB(A) 68 71
Net weight kg 750 800
Gross weight kg 780 830
Net dimensions mm 2190*1440*2060 2190*1440*2060
Packing dimensions mm 2220*1470*2190 2220*1470*2190
