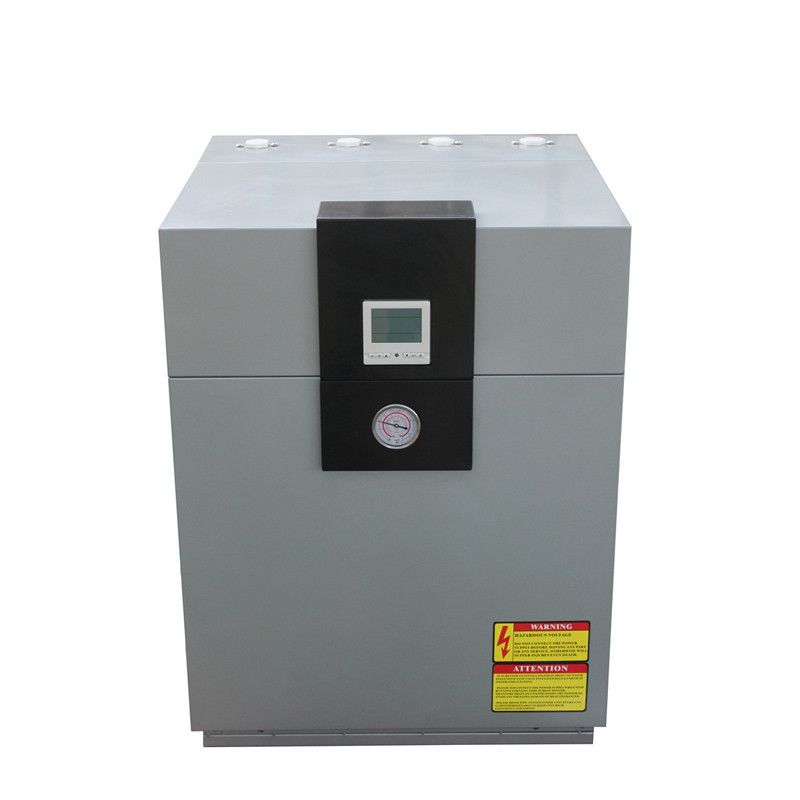

13~20kw ground source heat pump water to water heat pump geothermal heat pump

13~20kw ground source heat pump water to water heat pump geothermal heat pump
13~20kw ground source heat pump water to water heat pump geothermal heat pump13~20kw ground source heat pump water to water heat pump geothermal heat pump13~20kw ground source heat pump water to water heat pump geothermal heat pump13~20kw ground source heat pump water to water heat pump geothermal heat pump
CategoriesGround source heat pump
BrandREAL POWER
ModelESDWW-13X/17X/20X
Colorwhite, grey
CompressorPanasonic
Heat exchangerPlate heat exchanger
Throttling deviceElectronic expansion valve
ControllerLcd intelligent controller
RefrigerantR410A
Custom colorAvailable
SampleAvailable
FOB portFoshan
Terms of PaymentT/T
Update Time2021-10-16
Detail Information

13~20kw ground source heat pump water to water heat pump geothermal heat pump

Specification

Model ESDWW-13X ESDWW-17X ESDWW-20X
Heating capacity W10/W35 (1) KW 12.20  15.50  18.50
Heating power input W10/W35 KW 2.61  3.32  3.96
COP W10/W35   4.67  4.67  4.67
Heating capacity W10/W55 (2) KW 10.86  13.80  16.47
Heating power input W10/W55 KW 3.45  4.38  5.23
COP W10/W55   3.15  3.15  3.15
Max. water temperature 60  60  60
Rated water temperature 55  55  55
Water flow (Heating side) m3/h 2.30  3.4
Water flow (ground source side) m3/h 2.50  3.20  3.6
Water pressure drop Kpa 24  28  30
Noise dB(A) 41  41  42
Water connections Inch 1'' 1'' 1''
Net weight kg 90 105 130
Gross weight kg 105 120 145
Net dimensions mm 600*615*800 600*615*800 600*615*800
Packing dimensions mm 640*660*950 640*660*950 640*660*950
