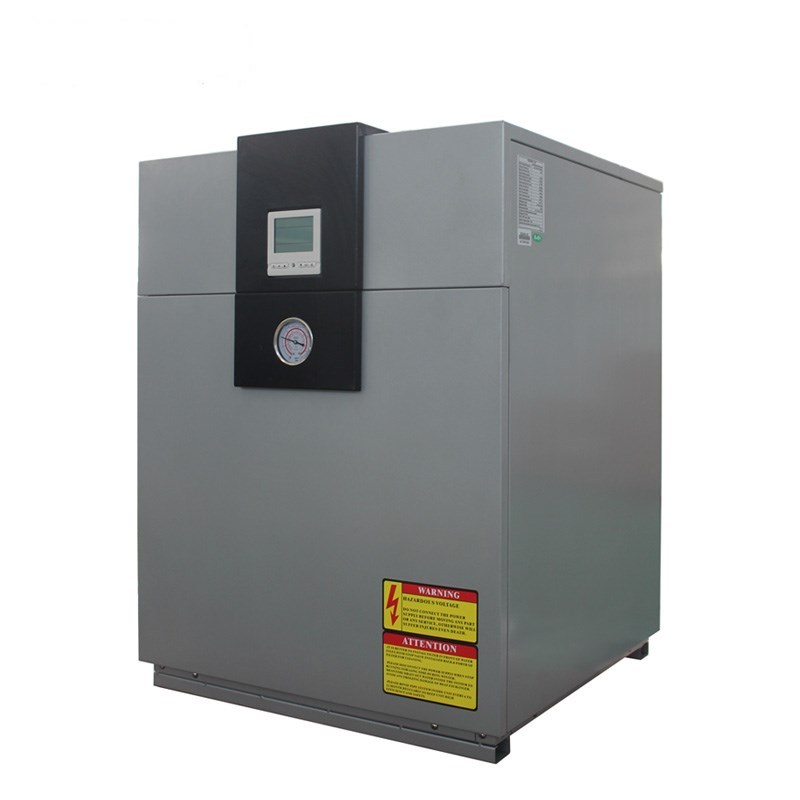

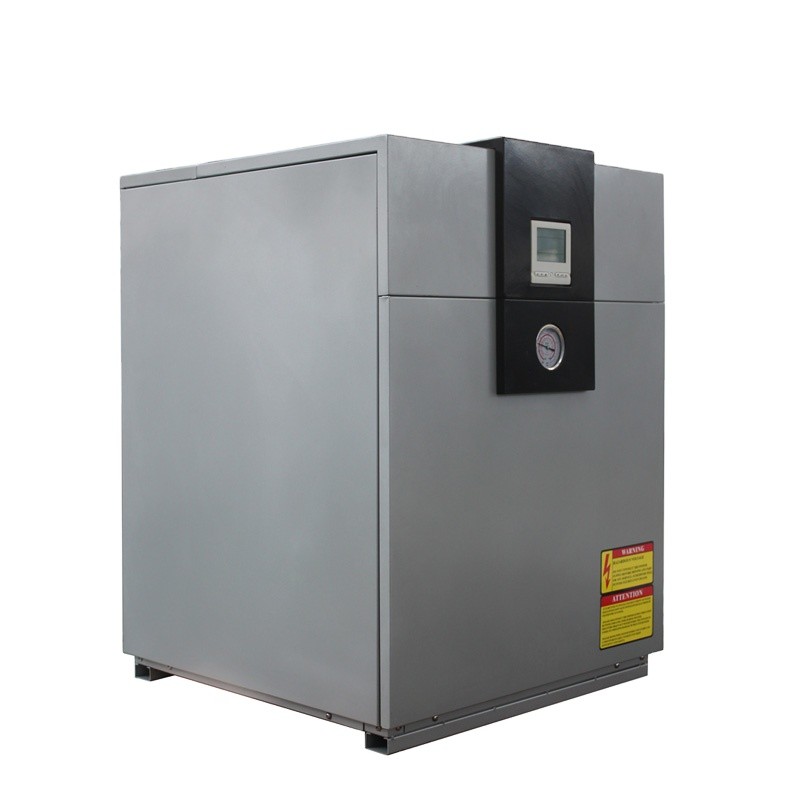

25·40kw renewable energy water source heat pump

25·40kw renewable energy water source heat pump
25·40kw renewable energy water source heat pump25·40kw renewable energy water source heat pump25·40kw renewable energy water source heat pump
CategoriesGround source heat pump
BrandREAL POWER
ModelESDWW-27X/34X/41X
Colorwhite, grey
CompressorPanosonic
Heat exchangerPlate heat exchanger
Throttling deviceElectronic expansion valve
ControllerLcd intelligent controller
RefrigerantR410A
Custom colorAvailable
SampleAvailable
FOB portFoshan
Terms of PaymentT/T
Update Time2021-10-16
Detail Information

25·40kw renewable energy water source heat pump

Specification

Model ESDWW-27X ESDWW-34X ESDWW-41X
Heating capacity W10/W35 (1) KW 24.40  30.85  36.88
Heating power input W10/W35 KW 5.22  6.68  7.98
COP W10/W35   4.67  4.62  4.62
Heating capacity W10/W55 (2) KW 21.80  27.48  32.89
Heating power input W10/W55 KW 6.91  8.74  10.49
COP W10/W55   3.15  3.14  3.14
Max. water temperature 60 60 60
Rated water temperature 55 55 55
Water flow (Heating side) m3/h 4.6 6.1 6.8
Water flow (ground source side) m3/h 4.8 6.5 7.2
Water pressure drop Kpa 32 34 36
Noise dB(A) 42 44 44
Water connections Inch 1-1/2" 1-1/2" 1-1/2"
Net weight kg 170 180 190
Gross weight kg 195 205 215
Net dimensions mm 850*615*800 850*615*800 850*615*800
Packing dimensions mm 900*680*950 900*680*950 900*680*950
